Overview of Qevork Gear OS Tiers
Three cumulative levels—each includes everything from the previous level.
QEVORK Gear OS™ : Cylindrical Edition (Parallel Shafts: Spur and Helical)
METROLOGY
Single-gear geometry, simplified strength analysis, dimensional tolerancing, reverse engineering via CMM, and manufacturing data sheet — the complete deterministic foundation for anyone measuring and specifying an isolated gear.
- Single gear calculation
- Spur + helical gears
- ISO 6336 simplified strength
- Manufacturing data sheet (dimensions over pins/balls, span measurement)
- ISO 1328-1 tolerance grading
US$59
/mo
US$ 708 / year
DESIGNER
Everything in T1 + gear pair, helical gears, full ISO 6336, micropitting, wear, power loss/efficiency, multi-stage gearbox, PDF report, and technical drawing — the complete design engine.
- Everything in METROLOGY
- Mating pair calculation
- ISO 6336 full strength analysis
- AGMA 2001-D04 comparative report
- PDF report
US$249
/mo
US$ 2.490 / year
2 months free
Coming soon
DYNAMICS
Everything in T2 + real-time multibody dynamic simulation, 3D loaded TCA, transmission error, tip relief, Campbell diagram, and numerical/2D export — the only tier with dynamic contact physics.
- Everything in DESIGNER
- TCA + TE
- Tip Relief optimizer
- Mating pair
- STEP / DXF / JSON
US$499
/mo
US$ 4.990 / year
2 months free
Coming soon
Feature
T1
T2
T3
GEOMETRY & BASIC CALCULATION
Gear Tooth Geometry (spur)
Single Gear Calculation
Gear Pair Calculation
Helical Gear Tooth System
STRENGTH & FATIGUE
Simplified Strength Calculation
Full Strength Calculation — ISO 6336 Parts 1–3 / AGMA 2101-D04 / DIN 3990
Micropitting — ISO TR 15144-1:2023
Wear Analysis (Archard) — ISO/TR 14521
TOLERANCING & METROLOGY
Accuracy Grade — ISO 1328-1:1997
Gear Dimensional Tolerances
Reverse Engineering — CMM-Based Identification
Coming soon
TRIBOLOGY & EFFICIENCY
Total Power Loss + Efficiency Map η(n,T)
DYNAMICS & NVH (DYNAMICS EXCLUSIVE)
Real-Time Multibody Dynamics (MBD) Simulation
3D Loaded Tooth Contact Analysis (TCA)
Static and Dynamic Transmission Error
Tip Relief Optimization
Campbell Diagram (Resonance × Speed)
SYSTEM / GEARBOX
Multi-Stage Gearbox (Gear Train)
Coming soon
Power Flow Diagram
REPORTS & EXPORT
Technical PDF Report
Technical Drawing
2D Export
Numerical Export (Raw Data)
CNC G-Code for Form Grinding (Siemens 840D)
Workspaces (tabs)
All 12 tabs remain visible on the bar at all times — lower tiers display a lock screen within the tab instead of the tab disappearing. (“see what is blocked”).
Workspace
Minimum Tier
Behavior in T1

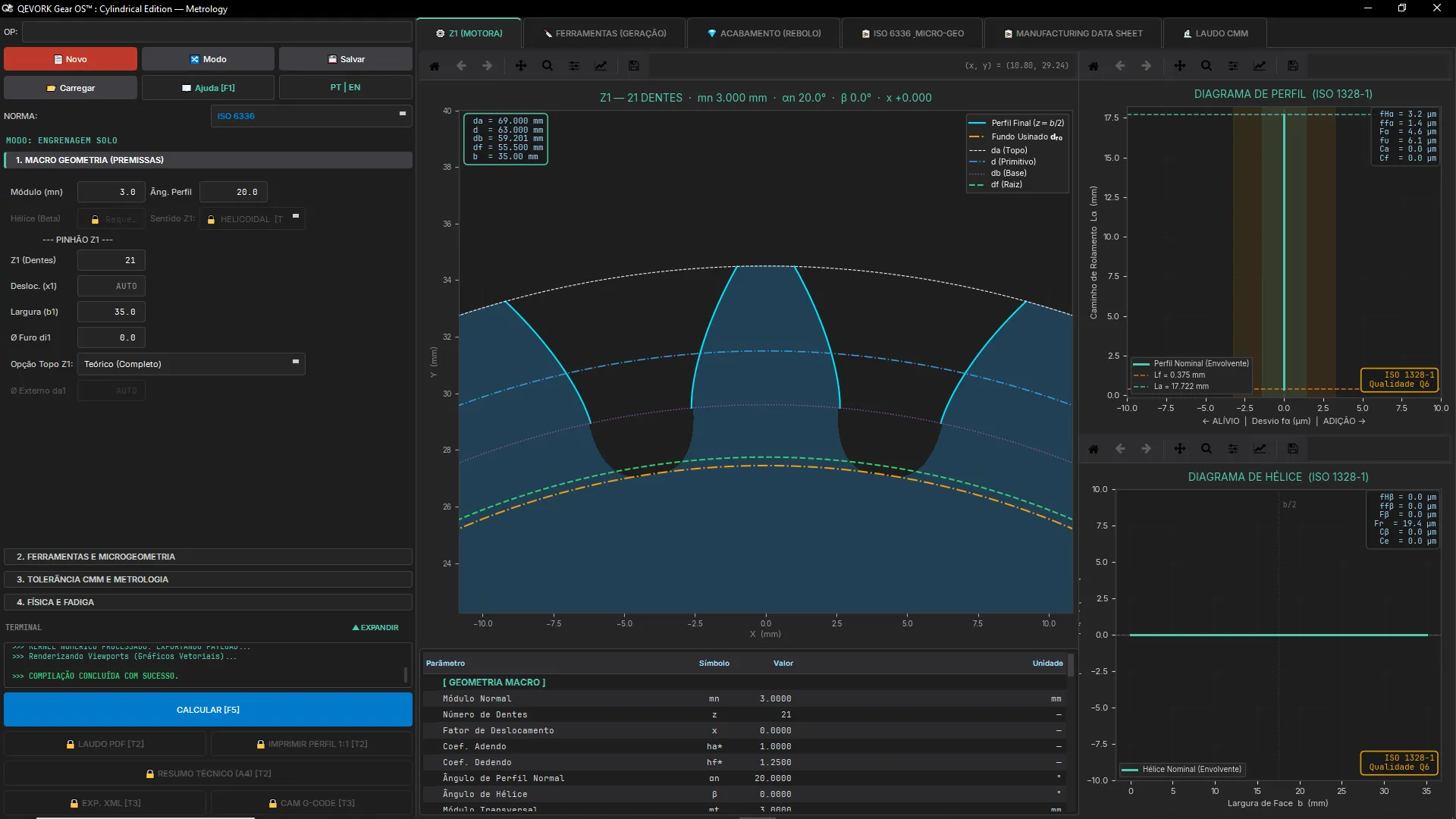

GEOMETRY (Gear 1)
T1
Functional
GEOMETRY (Pair / Gear 2)
T2
Lock screen
CNC Telemetry (MBD dynamics)
T3
Lock screen
TCA 3D
T3
Lock screen

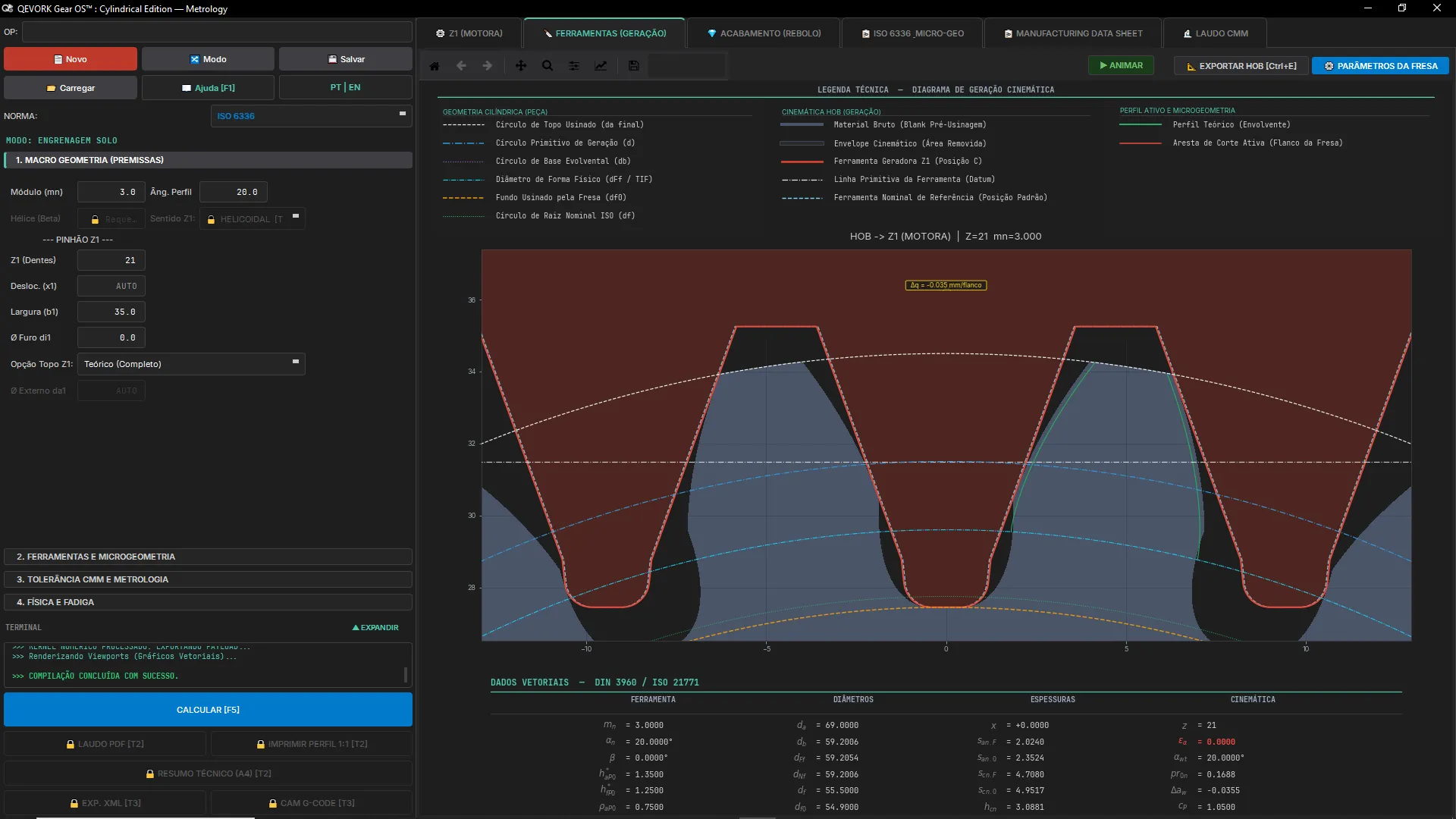

TOOLS (geometry + hobbing animation)
T1
Functional

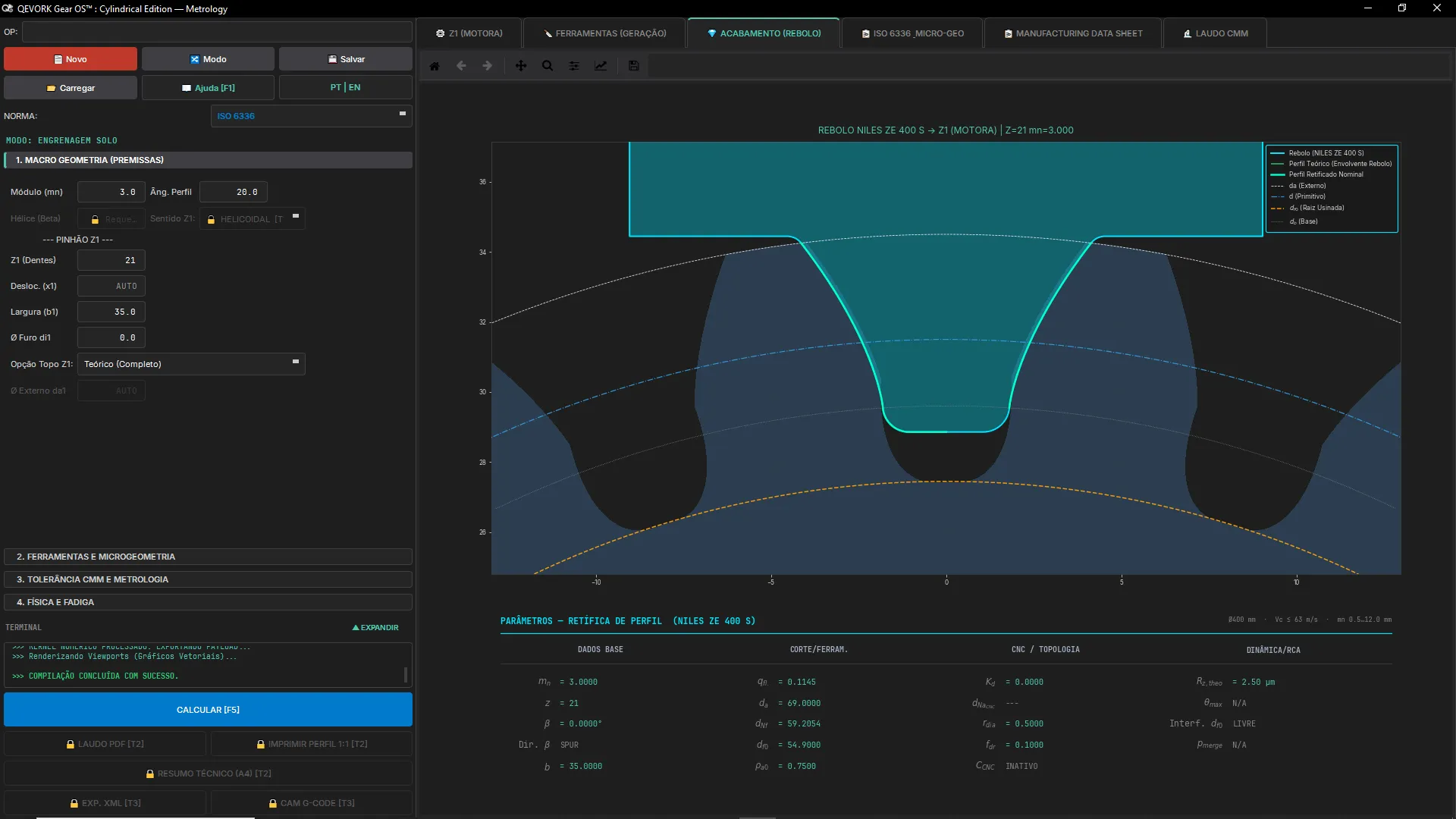

Grinding (G-code)
T1
Functional
IDENTIFICATION (CMM reverse engineering)
T1
Code complete, all tiers — calculation mode not yet enabled in the UI.
Coming soon

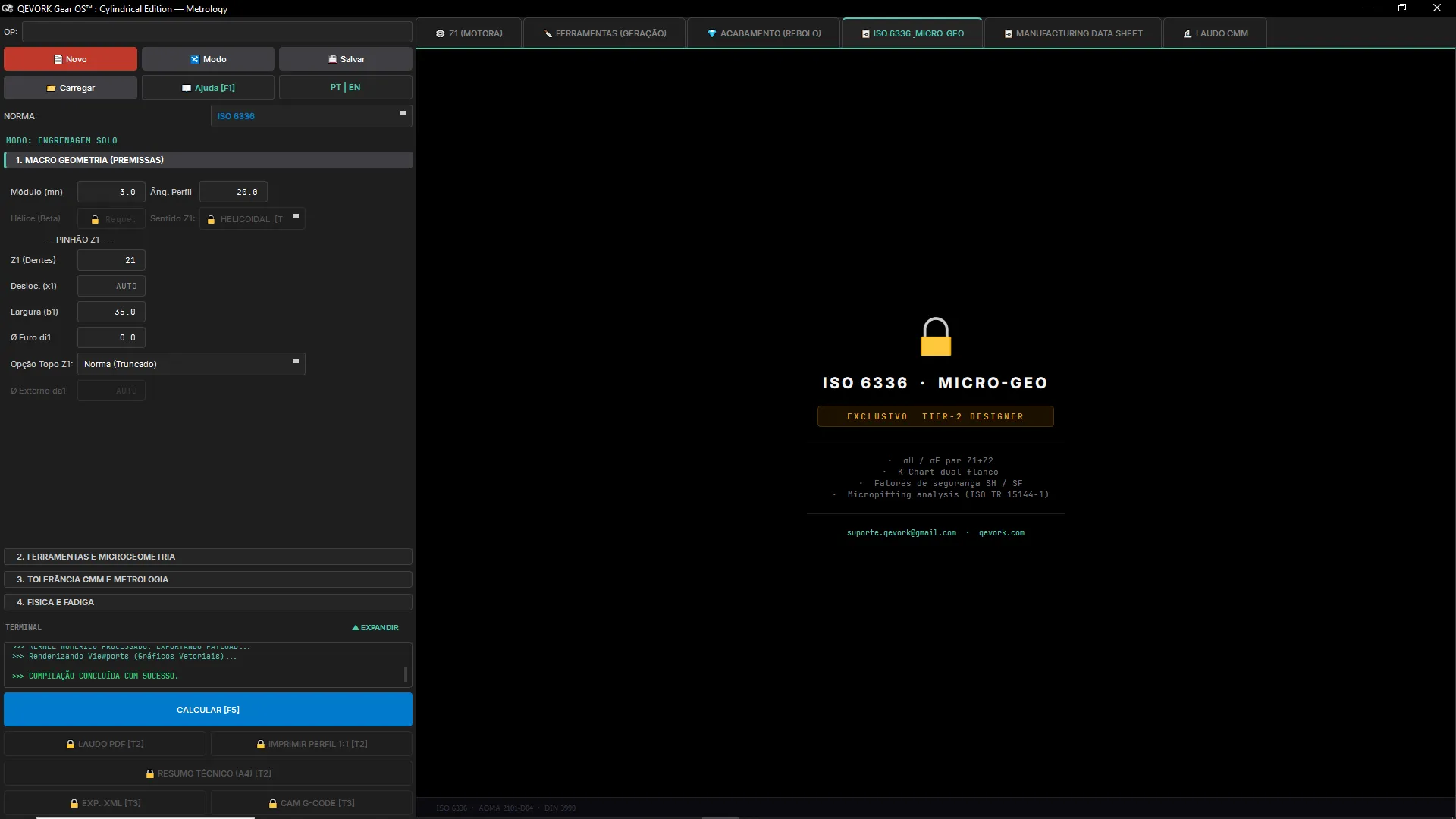

ISO 6336 & MICRO-GEO
T2
Lock screen

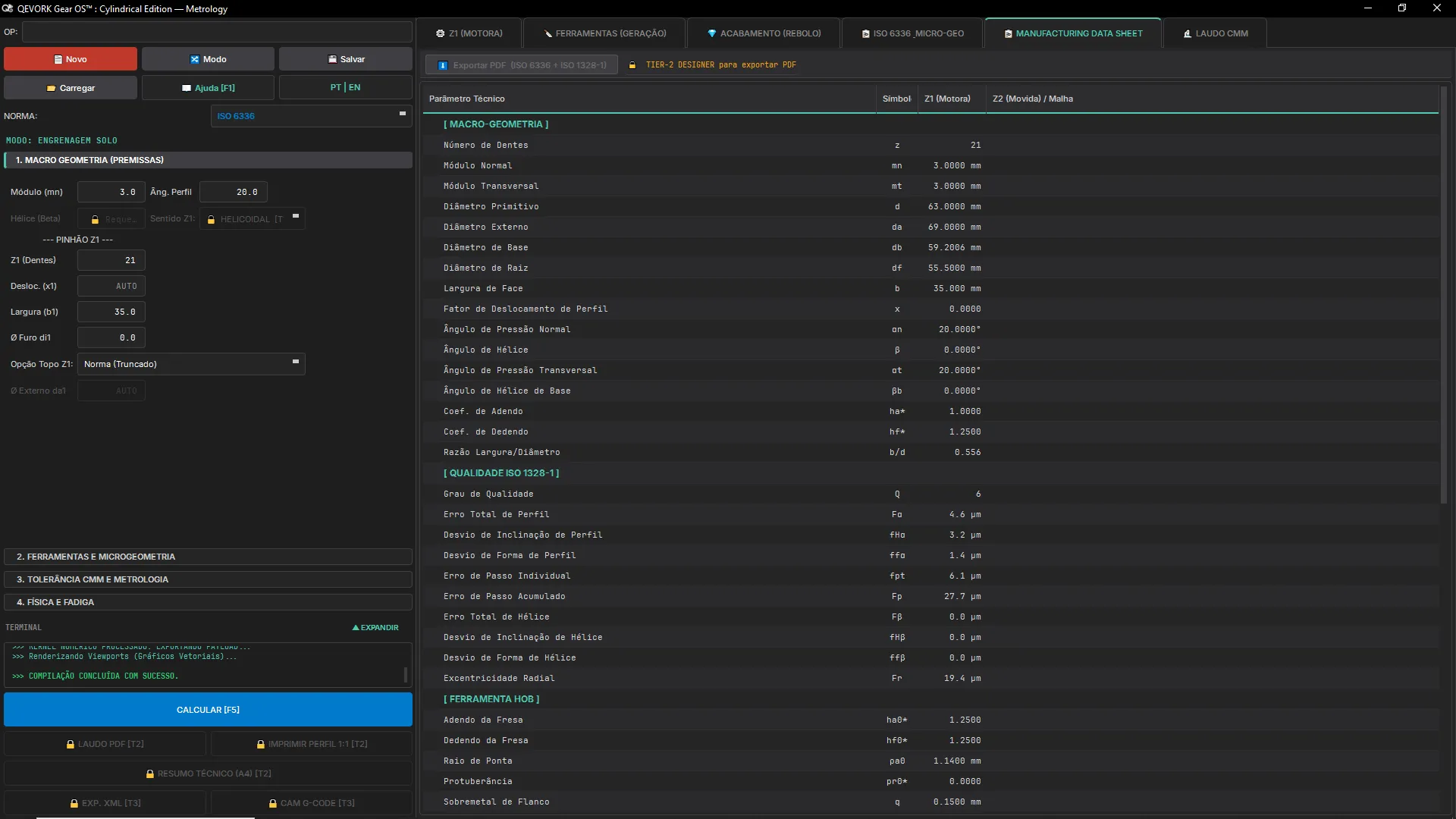

Manufacturing Specification Sheet
T1
Functional (exporting PDF requires T2+)

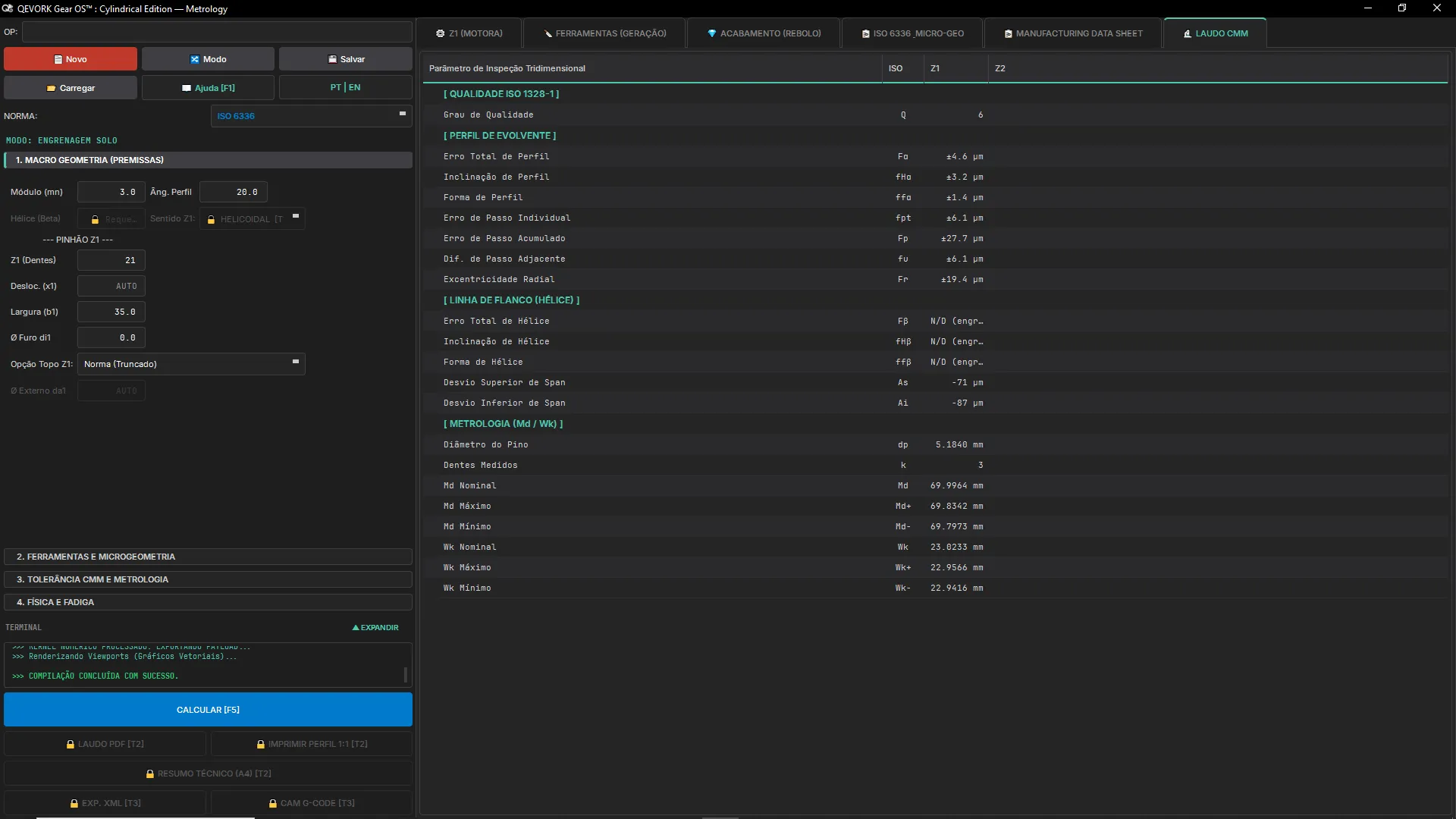

CMM Report
T1
Functional
GEAR TRAIN
T2
Code complete and tested — calculation mode not yet enabled in the UI
Coming soon
CAMPBELL
T3
Lock screen
Tabs (T1)
Competitive advantages
QEVORK Exclusive
MBD + TCA 3D running simultaneously in real-time, with a synchronization bridge between the two engines.
QEVORK Exclusive
Siemens 840D G-code generated directly from the project — without exporting to other CAM software.
QEVORK Exclusive
Campbell diagram integrated into the live MBD engine, rather than as static post-processing.
Rare in the sector
Correctly calculating ISO TR 15144-1 micropitting — most competitors get this standard wrong.
Implemented standards
ISO 6336-1/2/3
AGMA 2101-D04
DIN 3990
ISO TR 15144-1:2023 (micropitting)
ISO TR 15144-1:2023 (micropitting)
ISO TR 14521 (wear / Archard)
ISO 1328-1:1997 §5 (tolerance grade)
ISO TR 13989 (scuffing / Blok)
QEVORK Gear OS Cylindrical Edition — covers exclusively external spur and helical gears. Bevel, hypoid, and worm gears are not included in this edition.
